OpenWrt KGDB

As shown in the Kernel debugging with_qemu's GDB server documentation, it is easy to debug the Linux kernel in an emulated system. But some problems might only be reproducible on actual hardware (connected to the emulation setup). It is therefore sometimes necessary to debug a whole system.

In best case, the system can be debugged using JTAG. But this is often not possible and an in-kernel gdb remote stub like KGDB has to be used. The only requirement it has on the actual board is a simple serial console with poll_{get,put}_char() support.

Preparing OpenWrt

Turning off watchdog

Most CPUs have some kind of watchdog integrated. They can often be turned off and are often inactive when the watchdog driver is not loaded. For example, ath79 can be build without the internal watchdog support by changing in target/linux/ath79/config-*:

-CONFIG_ATH79_WDT=y
+# CONFIG_ATH79_WDT is not set

Unfortunately, there are also external watchdog chips which cannot be turned off. They have to be manually triggered regularly during the debugging process to prevent a sudden reboot. The details depend on the actual hardware but it often ends up in writing to a specific (GPIO control/set/clear) register. An example how to manually trigger an GPIO connected watchdog manually can be found in GDB Linux snippets

It is also possible to stop the watchdog service at runtime without disabling the driver. This should work for many optional watchdogs in SoCs:

ubus call system watchdog '{"magicclose":true}'
ubus call system watchdog '{"stop":true}'

Enabling KGDB in kernel

OpenWrt must be modified slightly to expose the kernel gdbstub (CONFIG_KERNEL_KGDB):

From: Sven Eckelmann <sven@narfation.org>
Date: Thu, 13 Oct 2022 16:40:21 +0200
Subject: openwrt: Add support for easily selectable kernel debugger support

When enabling this KERNEL_KGDB (after disabling KERNEL_DEBUG_INFO_REDUCED),
make sure to clean some packages to make sure that they are compiled with
the correct settings:

    make toolchain/gdb/clean
    make toolchain/gdb/compile -j$(nproc || echo 1)
    make target/linux/clean
    make -j$(nproc || echo 1)

The serial console will be shared between normal serial output and (k)gdb,
it is necessary to have an agent installed on your host system which
extracts the part relevant for (k)gdb.

    git clone https://git.kernel.org/pub/scm/utils/kernel/kgdb/agent-proxy.git/
    make -C agent-proxy
    ./agent-proxy/agent-proxy '127.0.0.1:5550^127.0.0.1:5551' 0 /dev/ttyUSB1,115200

It is then possible to see the full serial output in screen via:

    screen //telnet localhost 5550

On the target system, it is necessary to prepare the debugging session:

    echo ttyS0,115200 > /sys/module/kgdboc/parameters/kgdboc
    ubus call system watchdog '{"magicclose":true}'
    ubus call system watchdog '{"stop":true}'

Sometimes it might be necessary to force Linux to switch to kgdb:

    echo g > /proc/sysrq-trigger

The host can then connect to the kgdb using:

    cd "{LINUX_DIR}"
    cp ../vmlinux.debug vmlinux
    "${GDB}" -iex "set auto-load safe-path `pwd`/scripts/gdb/" -iex "target remote localhost:5551" vmlinux
    (gdb) lx-symbols ..
    (gdb) continue

Signed-off-by: Sven Eckelmann <sven@narfation.org>

diff --git a/config/Config-kernel.in b/config/Config-kernel.in
--- a/config/Config-kernel.in
+++ b/config/Config-kernel.in
@@ -2,6 +2,50 @@
 #
 # Copyright (C) 2006-2014 OpenWrt.org

+config KERNEL_VT
+    bool
+
+config KERNEL_GDB_SCRIPTS
+    select GDB_PYTHON
+    bool
+
+config KERNEL_HW_CONSOLE
+    bool
+
+config KERNEL_CONSOLE_POLL
+    bool
+
+config KERNEL_MAGIC_SYSRQ
+    bool
+
+config KERNEL_MAGIC_SYSRQ_SERIAL
+    bool
+
+config KERNEL_KGDB_SERIAL_CONSOLE
+    bool
+
+config KERNEL_KGDB_HONOUR_BLOCKLIST
+    bool
+
+config KERNEL_MIPS_FP_SUPPORT
+    depends on (mips || mipsel || mips64 || mips64el)
+    bool
+
+config KERNEL_KGDB
+    select KERNEL_VT
+    select KERNEL_GDB_SCRIPTS
+    select KERNEL_HW_CONSOLE
+    select KERNEL_CONSOLE_POLL
+    select KERNEL_MAGIC_SYSRQ
+    select KERNEL_MAGIC_SYSRQ_SERIAL
+    select KERNEL_KGDB_SERIAL_CONSOLE
+    select KERNEL_KGDB_HONOUR_BLOCKLIST
+    select KERNEL_MIPS_FP_SUPPORT if (mips || mipsel || mips64 || mips64el)
+
+    depends on KERNEL_DEBUG_INFO && !KERNEL_DEBUG_INFO_REDUCED
+    bool "Enable kernel debugger over serial"
+
+
 config KERNEL_BUILD_USER
     string "Custom Kernel Build User Name"
     default "builder" if BUILDBOT
@@ -471,7 +515,7 @@ config KERNEL_MODULE_ALLOW_BTF_MISMATCH

 config KERNEL_DEBUG_INFO_REDUCED
     bool "Reduce debugging information"
-    default y
+    default n
     depends on KERNEL_DEBUG_INFO
     help
       If you say Y here gcc is instructed to generate less debugging
diff --git a/include/kernel-build.mk b/include/kernel-build.mk
--- a/include/kernel-build.mk
+++ b/include/kernel-build.mk
@@ -143,6 +143,7 @@ define BuildKernel
   $(LINUX_DIR)/.image: $(STAMP_CONFIGURED) $(if $(CONFIG_STRIP_KERNEL_EXPORTS),$(KERNEL_BUILD_DIR)/symtab.h) FORCE
     $(Kernel/CompileImage)
     $(Kernel/CollectDebug)
+    +[ -z "$(CONFIG_KERNEL_GDB_SCRIPTS)" ] || $(KERNEL_MAKE) scripts_gdb
     touch $$@

   mostlyclean: FORCE
diff --git a/target/linux/generic/config-6.6 b/target/linux/generic/config-6.6
--- a/target/linux/generic/config-6.6
+++ b/target/linux/generic/config-6.6
@@ -7552,3 +7552,13 @@ CONFIG_ZONE_DMA=y
 # CONFIG_ZSMALLOC is not set
 CONFIG_ZSMALLOC_CHAIN_SIZE=8
 # CONFIG_ZSWAP is not set
+
+
+# KGDB specific "disabled" options
+# CONFIG_CONSOLE_TRANSLATIONS is not set
+# CONFIG_VT_CONSOLE is not set
+# CONFIG_VT_HW_CONSOLE_BINDING is not set
+# CONFIG_SERIAL_KGDB_NMI is not set
+# CONFIG_KGDB_TESTS is not set
+# CONFIG_KGDB_KDB is not set
+# CONFIG_KGDB_LOW_LEVEL_TRAP is not set

Start debugging session

Turning off kASLR

The kernel address space layout randomization complicates the resolving of addresses of symbols. It is highly recommended to start the kernel with the parameter "nokaslr". For example by adding it to CONFIG_CMDLINE or by adjusting the bootargs in the bootloader. It should be checked in /proc/cmdline whether it was really booted with this parameter.

Configure KGDB serial

The kgdb needs a serial device to work. This has to be set in the module parameter. We assume now that the serial console on our device is ttyS0 with baudrate 115200:

echo ttyS0,115200 > /sys/module/kgdboc/parameters/kgdboc

Switch to kgdb

The gdb frontend cannot directly talk to the kernel over serial and create breakpoints. The sysrq mechanism has to be used to switch from Linux to kgdb before gdb can be used. Under OpenWrt, this can be done using

echo g > /proc/sysrq-trigger

Connecting gdb

I would use following folder in my x86-64 build environment but they will be different for other architectures or OpenWrt versions:

  • LINUX_DIR=${OPENWRT_DIR}/build_dir/target-x86_64_musl/linux-x86_64/linux-6.6.73/
  • GDB=${OPENWRT_DIR}/staging_dir/toolchain-x86_64_gcc-13.3.0_musl/bin/x86_64-openwrt-linux-gdb
  • BATADV_DIR=${OPENWRT_DIR}/build_dir/target-x86_64_musl/linux-x86_64/batman-adv-2024.3/

When kgdb is activated using sysrq, we can configure gdb. It has to connect via a serial adapter to the target device. We must change to the LINUX_DIR first and can then start our target specific GDB with our uncompressed kernel image before we will connect to the remote device.

cd "${LINUX_DIR}"
cp ../vmlinux.debug vmlinux
"${GDB}" -iex "set auto-load safe-path scripts/gdb/" -iex "set serial baud 115200" -iex "target remote /dev/ttyUSB0" ./vmlinux

In this example, we are using an USB TTL converter (/dev/ttyUSB0). It has to be configured in gdb

lx-symbols ..

continue

You should make sure that it doesn't load any *.ko files from ipkg-* directories. These files are stripped and doesn't contain the necessary symbol information. When necessary, just delete these folders or specify the folders with the unstripped kernel modules:

lx-symbols ../batman-adv-2024.3/.pkgdir/ ../mac80211-regular/backports-6.12.6/.pkgdir/ ../button-hotplug/.pkgdir/

The rest of the process works similar to debugging using gdbserver. Just set some additional breakpoints and let the kernel run again. kgdb will then inform gdb whenever a breakpoints was hit. Just keep in mind that it is not possible to interrupt the kernel from gdb (without a Oops or an already existing breakpoint) - use the sysrq mechanism again from Linux to switch back to kgdb.

Some other ideas are documented in GDB Linux_snippets.

The kernel hacking debian image page should also be checked to increase the chance of getting debugable modules which didn't had all information optimized away. The relevant flags could be set directly in the routing feed like this:

diff --git a/batman-adv/Makefile b/batman-adv/Makefile
--- a/batman-adv/Makefile
+++ b/batman-adv/Makefile
@@ -28,6 +28,9 @@ PKG_CONFIG_DEPENDS += \
     CONFIG_BATMAN_ADV_DEBUG \
     CONFIG_BATMAN_ADV_TRACING

+RSTRIP:=:
+STRIP:=:
+
 include $(INCLUDE_DIR)/kernel.mk
 include $(INCLUDE_DIR)/package.mk

@@ -89,7 +92,7 @@ define Build/Compile
         $(KERNEL_MAKE_FLAGS) \
         M="$(PKG_BUILD_DIR)/net/batman-adv" \
         $(PKG_EXTRA_KCONFIG) \
-        EXTRA_CFLAGS="$(PKG_EXTRA_CFLAGS)" \
+        EXTRA_CFLAGS="$(PKG_EXTRA_CFLAGS) -fno-inline -Og -fno-optimize-sibling-calls -fno-reorder-blocks -fno-ipa-cp-clone -fno-partial-inlining" \
         NOSTDINC_FLAGS="$(NOSTDINC_FLAGS)" \
         modules
 endef

Agent-Proxy

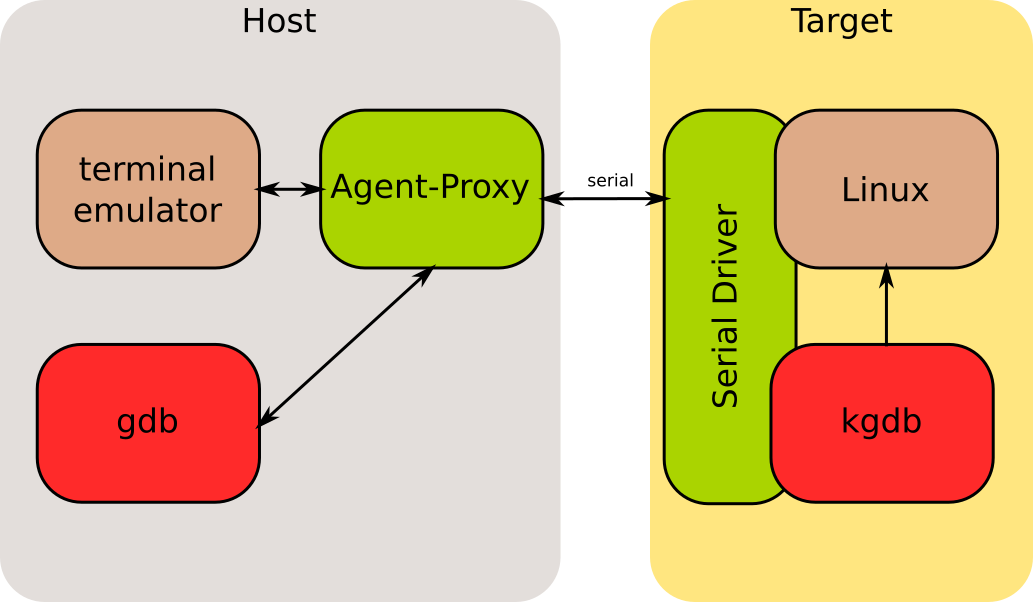

Instead of switching all the time between gdb and the terminal emulator (via UART/TTL), it can be rather helpful to use a splitter which can multiplex the kgdb and the normal terminal. So, instead of using screen/minicom/... + gdb against the tty device, the different sessions are just started against a TCP port.

Installation

$ git clone https://git.kernel.org/pub/scm/utils/kernel/kgdb/agent-proxy.git/
$ make -C agent-proxy

Starting up session

$ ./agent-proxy/agent-proxy '127.0.0.1:5550^127.0.0.1:5551' 0 /dev/ttyUSB0,115200

To connect to the terminal session, a simple telnet or telnet-like tool is enough:

$ screen //telnet localhost 5550

The setup of the kgdboc must happen exactly as described before. Including the switch to the debugging mode via sysrq.

The gdb has to be attached like to a remote gdb session

$ cd "${LINUX_DIR}"
$ "${GDB}" -iex "set auto-load safe-path scripts/gdb/" -iex "target remote localhost:5551" ./vmlinux

Enable KGDB on panic

Usually, a debugger catches problems like segfaults and allows a user to debug the problem further. On modern setups with kgdb, this is not the case because the system will automatically reboot after n-seconds.

This can be avoided by changing the sysctl config kernel.panic to 0. Either in /etc/sysctl.d/ or by manually issuing

sysctl -w kernel.panic=0

If a kgdb(oc) is attached then it should automatically receive a message when the Oops was noticed and can then be debugged further.
