Multicast - IGMP/MLD Report Forwarding¶
Patches:
WIP/Draft - not yet upstream
Introduction¶
Currently batman-adv forwards/floods an IGMP/MLD Report to all other nodes by default. The multicast_mld_rtr_only option allows to change this behavior to only forward IGMP/MLD Reports to nodes with a multicast router, to reduce IGMP/MLD overhead in the mesh while still enabling layer 3 multicast routing. However this option is not always safe to use, so this page illustrates the scenarios where this option can and cannot be used.
tl;dr: Scenario C is the potentially unsafe scenario for a multicast_mld_rtr_only option.
Scenario A: Multicast to host on node without querier¶
Scenario A, Overview:¶
Can bridged-in host A send multicast to bridged-in host B?
Scenario A, Analysis:¶
Answer: yes
Learning:
1) Bridged-in host B listens to a link-local multicast address <MC-LL-B>
2) Node Z floods an MLD Query through the mesh
3) Host B replies to the MLD query with an MLD Report for <MC-LL-B>
3.1) br0 on node Y learns that a listener for <MC-LL-B> is behind eth0 and then forwards the MLD Report further towards the querier on bat0, as required by RFC4541
3.2) batman-adv on node Y learns about the listener for <MC-LL-B> through the export of the bridge and then adds it to TT, which gets distributed to other nodes.
3.3) With the batman-adv multicast_rtr_only option enabled batman-adv on node Y will refrain to forward the MLD Report further into the mesh
3.4) batman-adv on nodes X and Z learn about <MC-LL-B> through the TT
Multicast packet forwarding:
4) Bridged-in host A sends a multicast packet to the multicast address <MC-LL-B>
4.1) br0 on node X has not heard of <MC-LL-B>, but will forward the multicast packet towards the MLD Querier, as required by RFC4541
4.2) batman-adv on node X had previously learned through the TT that <MC-LL-B> has a listener on node Y and batman-adv will therefore forward the multicast packet to node Y
4.3) br0 on node Y has previously learned about <MC-LL-B> through the MLD Report, so it forwards the multicast packet on eth0 to host B
4.4) Host B successfully receives the multicast packet from host A!
Scenario B: Multicast to host on node with a querier¶
Scenario B, Overview:¶
Can bridged-in host A send multicast to bridged-in host B?
Scenario B, Analysis:¶
Answer: yes
Learning:
1) Bridged-in host B listens to a link-local multicast address <MC-LL-B>
2) Node Y floods an MLD Query through the mesh
3) Host B replies to the MLD query with an MLD Report for <MC-LL-B>
3.1) br0 on node Y learns that a listener for <MC-LL-B> is behind eth0 and then forwards the MLD Report further towards the querier on br0 - but not to bat0 - as required by RFC4541
3.2) batman-adv on node Y learns about the listener for <MC-LL-B> through the export of the bridge and then adds it to TT, which gets distributed to other nodes.
3.3) No matter if enabling or disabling the batman-adv multicast_rtr_only option bat0 on node Y will not have received an MLD Report
3.4) batman-adv on node X learns about <MC-LL-B> through the TT
Multicast packet forwarding:
4) Bridged-in host A sends a multicast packet to the multicast address <MC-LL-B>
4.1) br0 on node X has not heard of <MC-LL-B>, but will forward the multicast packet towards the MLD Querier, as required by RFC4541
4.2) batman-adv on node X had previously learned through the TT that <MC-LL-B> has a listener on node Y and batman-adv will therefore forward the multicast packet to node Y
4.3) br0 on node Y has previously learned about <MC-LL-B> through the MLD Report, so it forwards the multicast packet on eth0 to host B
4.4) Host B successfully receives the multicast packet from host A!
Scenario C: Multicast from host on node with a querier¶

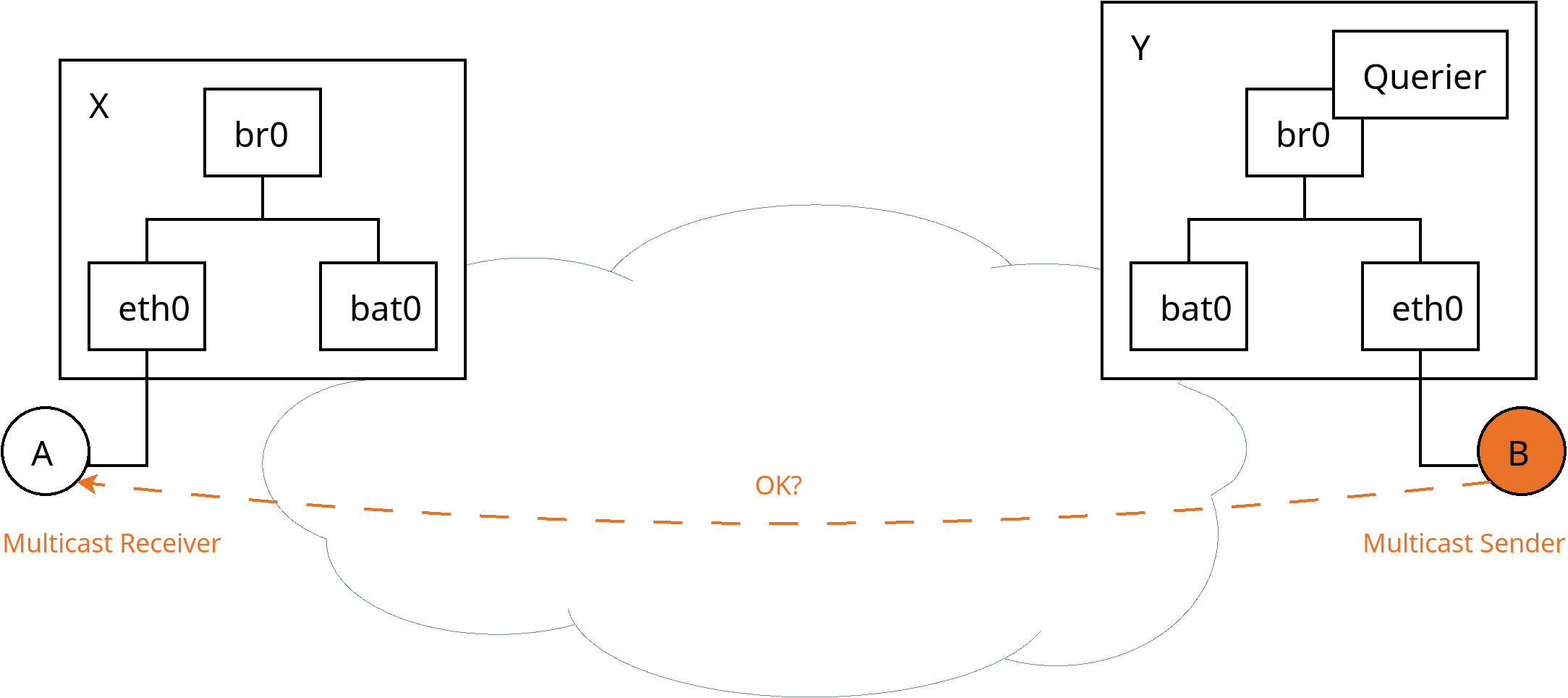

Scenario C, Overview:¶
Can bridged-in host B send multicast to bridged-in host A?

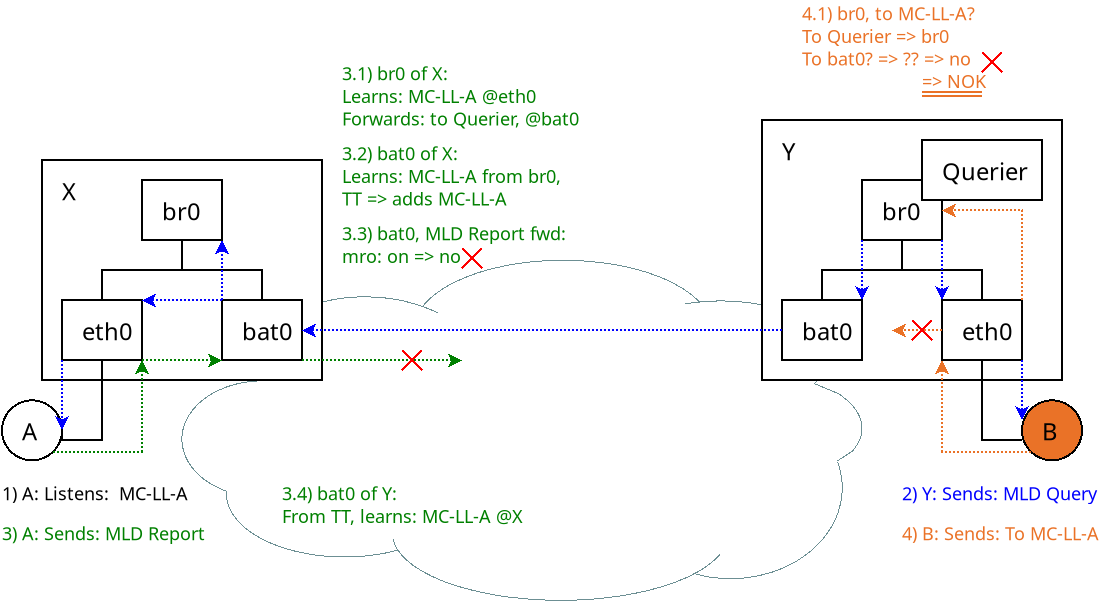

Scenario C, Analysis:¶
Answer: no!
Learning:
1) Bridged-in host A listens to a link-local multicast address <MC-LL-A>
2) Node Y floods an MLD Query through the mesh
3) Host A replies to the MLD query with an MLD Report for <MC-LL-A>
3.1) br0 on node X learns that a listener for <MC-LL-A> is behind eth0 and then forwards the MLD Report further towards the querier on bat0, as required by RFC4541
3.2) batman-adv on node X learns about the listener for <MC-LL-A> through the export of the bridge and then adds it to TT, which gets distributed to other nodes.
3.3) With the batman-adv multicast_rtr_only option enabled batman-adv on node X will refrain to forward the MLD Report further into the mesh
3.4) batman-adv on node Y learns about <MC-LL-A> through the TT
Multicast packet forwarding:
4) Bridged-in host B sends a multicast packet to the multicast address <MC-LL-A>
4.1) br0 on node X has not heard of <MC-LL-A>, but will forward the multicast packet towards the MLD Querier - but not to bat0 - as required by RFC4541
4.2) batman-adv on node X had previously learned through the TT that <MC-LL-B> has a listener on node Y and batman-adv will therefore forward the multicast packet to node Y
4.3) br0 on node Y has previously learned about <MC-LL-B> through the MLD Report, so it forwards the multicast packet on eth0 to host B
4.4) Host B successfully receives the multicast packet from host A!
Potential Workarounds:
A) Set bridge port multicast_router setting for bat0 to 2 (e.g.: $ echo 2 > /sys/class/net/bat0/brport/multicast_router) => always forwards multicast packets to bat0
B) Run a multicast router on br0 of node Y (disadvantage: receives all multicast packets)
C) Run a bridged-in multicast router (which supports MRD) on node Y (disadvantage: receives all multicast packets)
D) Send report not just to multicast routers, but also to queriers (not implemented)
E) Export batman-adv TT-global to bridge MDB (not implemented)
Scenario D: Multicast from host on node with a bridged-in querier¶

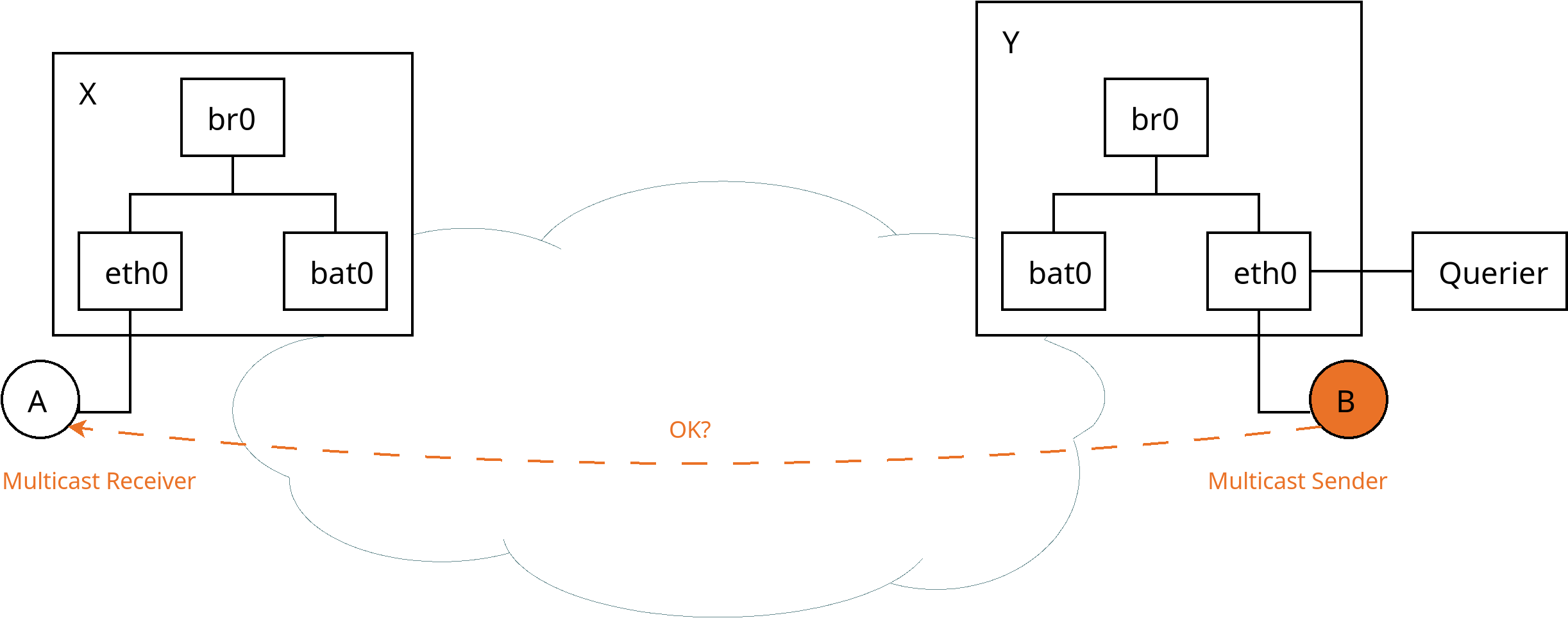

Scenario D, Overview:¶
Can bridged-in host B send multicast to bridged-in host A?
Scenario D, Analysis:¶
Answer: yes
Learning:
1) Bridged-in host A listens to a link-local multicast address <MC-LL-A>
2) Bridged-in host C on node Y floods an MLD Query through the mesh
2.1) Node Y sets and floods a WANT_ALL flag, because querier is potentially "shadowing".
2.2) Node X learns node Y's WANT_ALL flag.
3) Host A replies to the MLD query with an MLD Report for <MC-LL-A>
3.1) br0 on node X learns that a listener for <MC-LL-A> is behind eth0 and then forwards the MLD Report further towards the querier on bat0, as required by RFC4541
3.2) batman-adv on node X learns about the listener for <MC-LL-A> through the export of the bridge and then adds it to TT, which gets distributed to other nodes.
3.3) batman-adv on node X will forward the MLD Report towards node Y, even with the multicast_rtr_only option enabled, as node Y has the WANT_ALL flag set.
3.4) batman-adv on node Y learns about <MC-LL-A> through the TT
3.5) br0 on node Y learns that a listener for <MC-LL-A> is behind bat0 and then forwards the MLD Report further towards the querier on eth0, as required by RFC4541
Multicast packet forwarding:
4) Bridged-in host B sends a multicast packet to the multicast address <MC-LL-A>
4.1) br0 on node X has heard of <MC-LL-B> and will forward the multicast packet towards bat0, as required by RFC4541
4.2) batman-adv on node X had previously learned through the TT that <MC-LL-A> has a listener on node X and batman-adv will therefore forward the multicast packet to node X
4.3) br0 on node X has previously learned about <MC-LL-A> through the MLD Report, so it forwards the multicast packet on eth0 to host A
4.4) Host A successfully receives the multicast packet from host B!
Scenario E: Multicast to host on node with a bridged-in querier¶

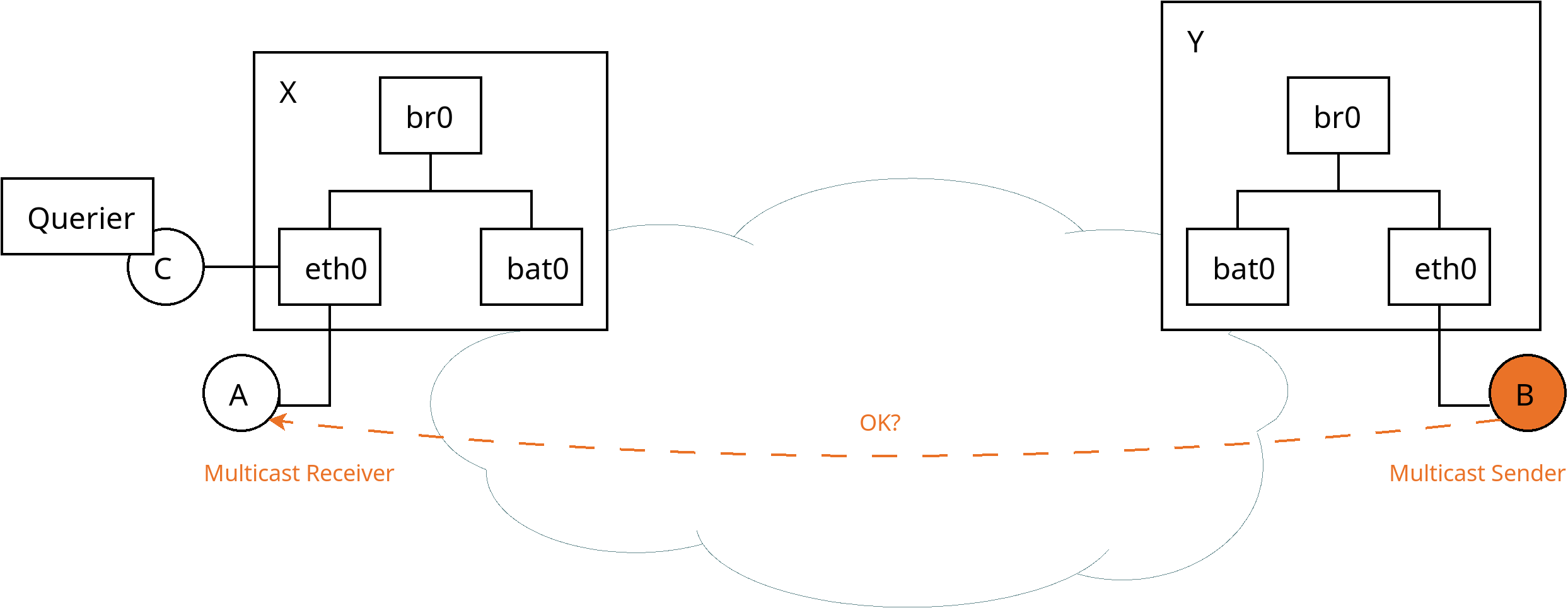

Scenario E, Overview:¶
Can bridged-in host B send multicast to bridged-in host A?
Scenario E, Analysis:¶
Answer: yes
Learning:
1) Bridged-in host A listens to a link-local multicast address <MC-LL-A>
2) Bridged-in host C on node X floods an MLD Query through the mesh
2.1) Node X sets and floods a WANT_ALL flag, because querier is potentially "shadowing".
2.2) Node Y learns node Y's WANT_ALL flag.
3) Host A replies to the MLD query with an MLD Report for <MC-LL-A>
3.1) br0 on node X learns that a listener for <MC-LL-A> is behind eth0 (unless it's shadowed by the querier on host C) and will refrain to forward the MLD Report further towards bat0 because bat0 has no querier behind it, as required by RFC4541
3.2) batman-adv on node X learns about <MC-LL-A> through the export of the bridge (unless it's shadowed), but will not add it to TT, because it has the WANT_ALL flag set
Multicast packet forwarding:
4) Bridged-in host B sends a multicast packet to the multicast address <MC-LL-A>
4.1) br0 on node Y has not heard of <MC-LL-A>, but will forward the multicast packet towards the MLD Querier, as required by RFC4541
4.2) batman-adv on node Y has not previously learned through the TT about <MC-LL-A> but batman-adv will forward the multicast packet to node X regardless because of the WANT_ALL flag
4.3) br0 on node X has previously learned about <MC-LL-A> through the MLD Report, so it forwards the multicast packet on eth0 to host A
4.4) Host A successfully receives the multicast packet from host B!
