For quite some time the term "translation table" keeps showing up in emails, release announcements and patches but why making such a fuzz about it ? The initial translation table release (batman-adv 2011.3.0) appeared a number of months ago and still, code refinements as well as new translation table features find their way into each release. It is about time to shed some light on what makes the translation table a vital component of a batman-adv mesh network.
The translation table¶
In most batman-adv mesh networks you have the mesh nodes building the backbone of your network and a number of ordinary (non-mesh) clients using the mesh network to exchange data amongst each other or to connect to external networks (e.g. the internet). Since the non-mesh clients do not participate in the mesh itself a mechanism is needed to share the information about the client's location within the network. That is the primary task of the translation table: At every given moment it knows which non-mesh client is connected to the mesh network via which batman-adv node. Without this information non-mesh clients would not be able to receive any traffic because no other node would know where to send the packets to.
One of the new concepts introduced with the translation table is the versioning of local changes. All non-mesh clients connecting or disconnecting from a mesh node within an OGM interval belong to the same translation table version. Once the translation table changes the new version is published in the network allowing neighbor nodes to request a translation table diff instead of the whole table, thereby drastically reducing the overhead. It also is possible to ask his direct neighbor for the current translation table of any other mesh node in the network as the tables can be identified using the version number. Large mesh networks do not need to retrieve the translation table from the far end of the mesh but can simply query their neighbors.
More features¶
Due to the extensible nature of the translation table a number of features could be built on top of it. Notable examples are the AP Isolation and fast roaming support. With mobile devices getting more and more popular roaming is an often requested feature. To avoid connection loss while moving from one mesh node to the next it is imperative to sync all involved nodes about the non-mesh client's new location as fast as possible.

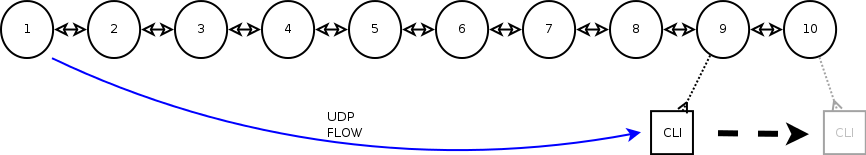

In order to illustrate the difficulty and how the translation table code handles this situation it is best to look at an example. Here we have a non-mesh client exchanging data with node1 while being connected to node9.
As soon as the non-mesh client roams from node9 to node10 the stream is disconnected until node1 learns the new location of our client. Depending on various parameters this synchronization can take a long time. This is how the old mechanism (pre translation table) recovered while running a 5sec OGM interval with 25% packet loss between each node (the blue bar marks the roaming event):

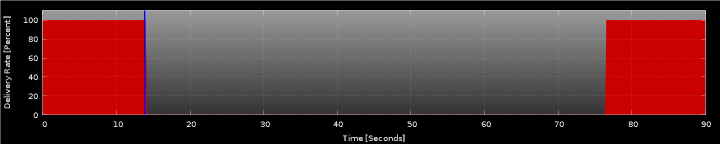

The old mechanism needed roughly 65 seconds to recover the stream from the client's roaming. Testing the translation table under the same circumstances looks much better:
Further reading¶
All this merely is the tip of the iceberg. The translation table is the key player when it comes to integrating non-mesh clients as efficiently as possible. A number of documents are available for the curious reader:
Happy routing,
The B.A.T.M.A.N. team
The B.A.T.M.A.N. team is delighted to announce its newest release, 2012.1.0, bringing mainly bug fixes and code cleanups. Also part of the release is a newly developed routing algorithm framework which allows switching between different routing algorithms. As the kernel module always depends on the Linux kernel it was compiled against, it does not make sense to provide binaries on our website. As usual, you will find the signed tarballs in our download section:
https://downloads.open-mesh.org/batman/releases/batman-adv-2012.1.0/
as well as prepackaged binaries in your distribution.
Thanks¶
Thanks to all people sending in patches:
and to all those that supported us with good advice or rigorous testing:
batman-adv¶
Most changes coming with this release happened under the hood to either improve stability or pave the way for new features, most notably the routing algorithm abstraction. Over the last months several ideas centering around the question how to improve the current routing algorithm have surfaced. To better experiment with these ideas while keeping a working system for our users the routing algorithm abstraction was added. It allows to easily develop and test new routing concepts while taking advantage of the existing batman-adv features and infrastructure. The API will be further refined with the next releases to enable alternative algorithms to be included as well.
The translation table code received further attention which led to the discovery of endless loops in the tt-request mechanism (under certain circumstances). This was addressed along with a TT_CLIENT_NEW flag race condition when a new client was added to the internal hash. All batman-adv internal timeouts have been converted to milliseconds for consistency purposes. Even the batman-adv makefile was modernized to provide an install target and a selection system for conveniently compiling features into the module.
batctl¶
Each batman-adv (layer 2) ICMP packet used to ping or traceroute a node comes with a sequence number to detect failures. Prior to this release batctl ping/traceroute did not compare the outgoing sequence number with the incoming sequence number to verify whether they indeed match. In WiFi environments exhibiting high packet loss and excessive packet retransmissions this missing check led to false results.
Furthermore, the return code of batctl ping was improved to properly indicate a failure.
Happy routing,
The B.A.T.M.A.N. team
You may already have seen the nice B.A.T.M.A.N. T-Shirts on some of the geeks out there. Now you can finally buy them online - thanks to the nice persons from freewear.org!
https://www.freewear.org/?org=B.A.T.M.A.N.
And this is how it looks like - from the Wireless Battle of the Mesh 2012 in Athens
the student application period for the Google Summer of Code 2012 has opened.
A chance for any student to get their hands dirty on their favorite OpenSource
project and getting its development process and code base to know better
during these 2 months - while getting payed for it!
As last year, B.A.T.M.A.N. tasks will be done as part of the freifunk project,
which again will serve as an umbrella organization for various projects dealing
with wireless mesh networks.
If you are interested in mesh networking and B.A.T.M.A.N. and if you also love
OpenSource software and would like to become a more firm part of it, then please
apply on fore freifunk:
https://www.google-melange.com/document/show/gsoc_program/google/gsoc2012/timeline
and get in touch with us via mailinglist and/or IRC. So far the following ideas
have been collected which you may apply for:
https://wiki.freifunk.net/Ideas#B.A.T.M.A.N.
But feel free to tell us your own suggestions and ideas, too.
***** ****
*** Student application deadline is the 6th of April!! ***
**** *****
Happy routing,
The B.A.T.M.A.N. team

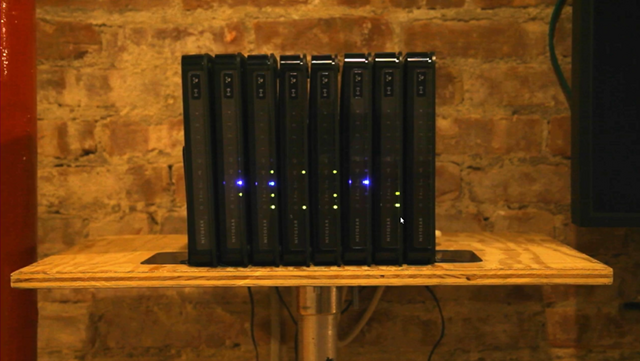

We all love our blinking routers when they happily exchange our data. One of the things we have definitely not thought of while designing batman-adv: These LEDs can even have a higher meaning! Sean McIntyre and Jonathan Kiritharan created this nice Conway’s Game of Life implementation on 8 routers based on OpenWrt and batman-adv. Enjoy this fine art project!
